The IFR 4000 is a compact, lightweight and weatherproof unit designed for testing ILS, VOR, Marker Beacon and VHF/UHF communications avionics systems.
The IFR 4000, with its lightweight size (under 8 lbs.), long run time battery (8 hrs) and ergonomic design, will provide the user with the most portable navigational communications ramp test set on the market today. Cockpit and bench use testing can be easily interchanged. The menu driven functionality and guided test capability make this instrument extremely easy to use. Combine these benefits with the outstanding price and the user has an instrument that delivers total value.
The IFR 6000 is a compact, lightweight and weatherproof unit designed for testing MODE A/C/S transponder, DME, TCAS, ADS-B and TIS avionics systems.
Mode S level 1-4, (level automatically determined), FAR Part 43 appendix F, (including proposed Eurocontrol extension), Eurocontrol Elementary and Enhanced Surveillance
ADS-B MON/GEN/GICB, TIS, ICAO Annex 10 amendment 77
Quickly and easily provides accurate measurement of transponder transmitting frequency, power and receiver sensitivity. Predetermined configurations for testing any class of transponder.
Tests any DME 1 MHz spaced X or Y channel. Measurements include: interrogator transmitter frequency/peak power, Pulse Repetition Frequency (PRF), P1/P2 width and pulse spacing. Provides accurate range and velocity simulation, station ident, squitter control.
Simulates the airborne environment necessary to allow verification/certification of proper operation of an aircraft’s TCAS I and II installations.
Detachable directional antenna, Large 5.7-inch LCD display, Simple user interface, Lightweight at less than 8 lbs.

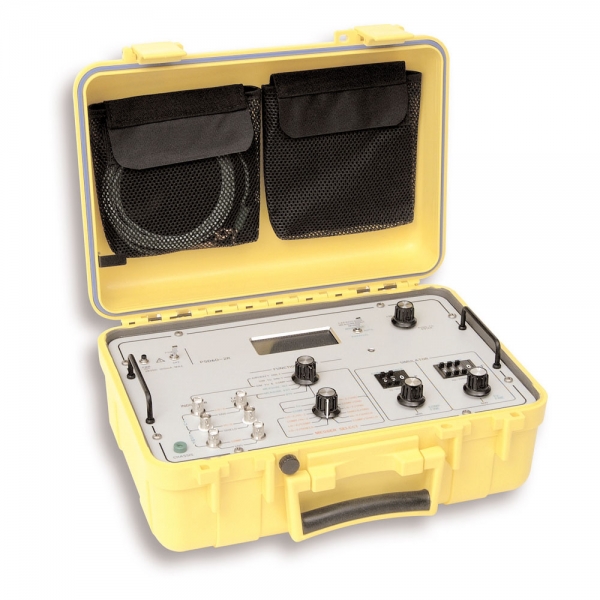

The PSD60-2R Fuel Quantity Test Set is an accurate, stable unit designed to test AC capacitance type fuel quantity measurement systems and their line replaceable components.
The PSD60-2R, along with aircraft-specific interface units or cables*, provides complete capability to test most aircraft with AC capacitance systems.
The PSD60-2R performs these functions:
Measurement of total tank capacitance, individual tank units and compensators
Simulation of capacitance for indicator calibration
Simulation of compensator capacitance value for dry calibration
Measurement of the insulation resistance of tank units and aircraft harness
Measurement of coax center conductor to shield for fault isolation
Display of capacitance resolution to 0.00 pF for accurate individual tank unit test¬ing (to 199.99 pF)

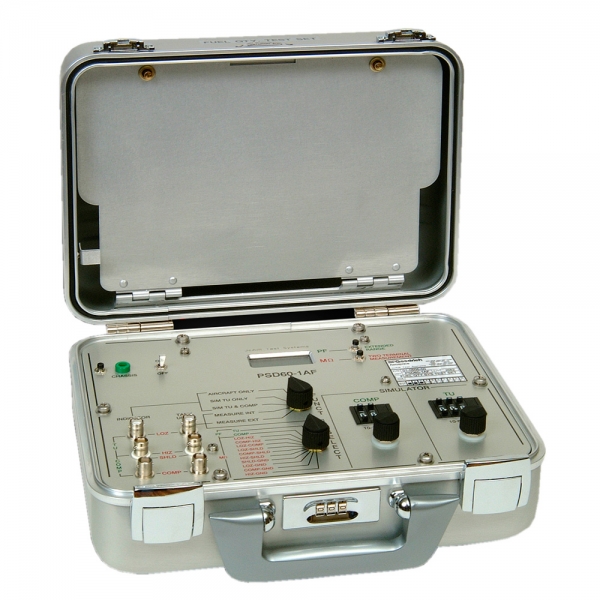

The PSD60-1AF is designed to calibrate and troubleshoot any AC capacitive fuel, oil or LOX quantity system.
This test set is utilized extensively by rotary and fixed-wing military aircraft operators around the world.
*The PSD60-1AF will:
Measure the capacitance of any AC capacitive fuel, oil or LOX quantity transmitter, or sets of transmitters connected in parallel
Simulate either one or two capacitors simultaneously to calibrate any AC capacitive liquid quantity gauging system
Measure the insulation resistance in megohms of capacitive liquid quantity transmitters (probes) and/or aircraft wiring
