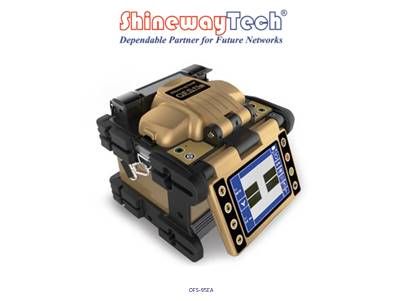

Single fibre cladding alignment fusion splicer

Stock Code:
Item: OFS-95EA

Description

CLADDING ALIGNMENT OPTICAL FIBRE FUSION SPLICER
The OFS-95EA is perfect for FTTx installation and maintenance. It will automatically finish the whole fibre fusion process in 9 seconds in fast mode, with splice loss lower than 0.02dB for singlemode fibre. The 3.5-inch LCD, dual CMOS monitors, separately or simultaneously display the X and Y axis, thus different fusion stages can be shown clearly. It is compatible with ITU-T SM/MM/DS/NZDS/ED fibre, and is equipped with 4-in-1 holders and an SOC adapter. The OFS-95EA has a compact & light weight with an AC/DC power supply and can perform 200+ splicing and heating cycles on one charge.

Kit Includes: Fusion Splicer, Cleaver (OFC-10CT), Lithium Battery, Cooling rack, 4-in-1 Fibre holder(one pair), USB data cable, Adapter, Carrying Case, User Manual(CD), Warranty card, Calibration Certificate

Manufacturer:
SHINEWAY TECHNOLOGIES
Model Number:
OFS-95EA
Warranty:
1 YEAR
Available:
3 WEEKS
$2,413.00 ex GST
$2,774.95 inc GST

Downloads
