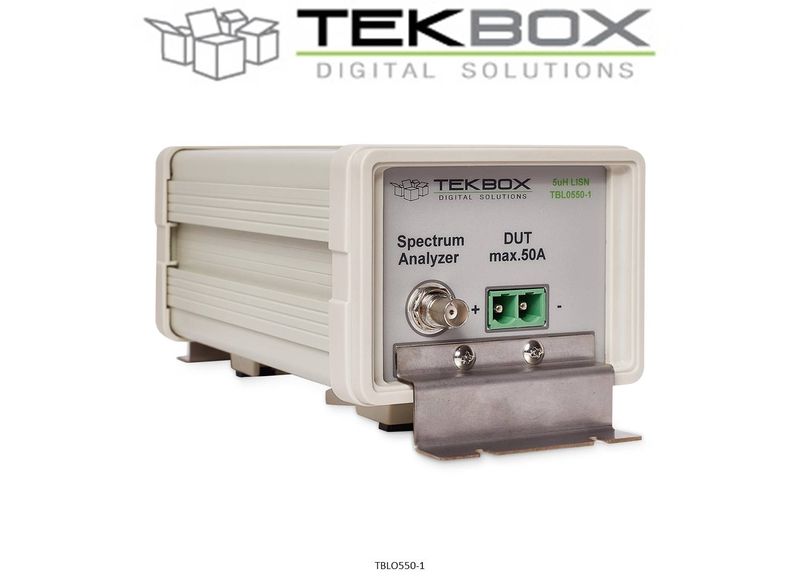

TekBox TBL0550-1 50uH 50A Line Impedance Stabilisation Network LISN

Stock Code:
Item: TBL0550-1

Description

The TBL0550-1 5µH LISN is a device required to setup conducted noise measurements of DC-powered electronic equipment and used for measurements in the range of 150kHz to 110 MHz according to CISPR 16-1-2, CISPR-25, EN55025, MIL-STD-461F, ISO11452-4 and with limitations DO-160/ED-14G and ISO 7637-2.

Two TBL0550-1 in combination with the Tekbox LISN Mate enable separate measurement of common mode and differential mode noise.
The unit comes equipped with a BNC-male to N-male RG232 cable, mating connectors and ground brackets to attach it to a ground plane.

Manufacturer:
TEKBOX
Model Number:
TBL0550-1
Warranty:
1 YEAR
Available:
2 WEEKS
$1,229.00 ex GST
$1,413.35 inc GST
