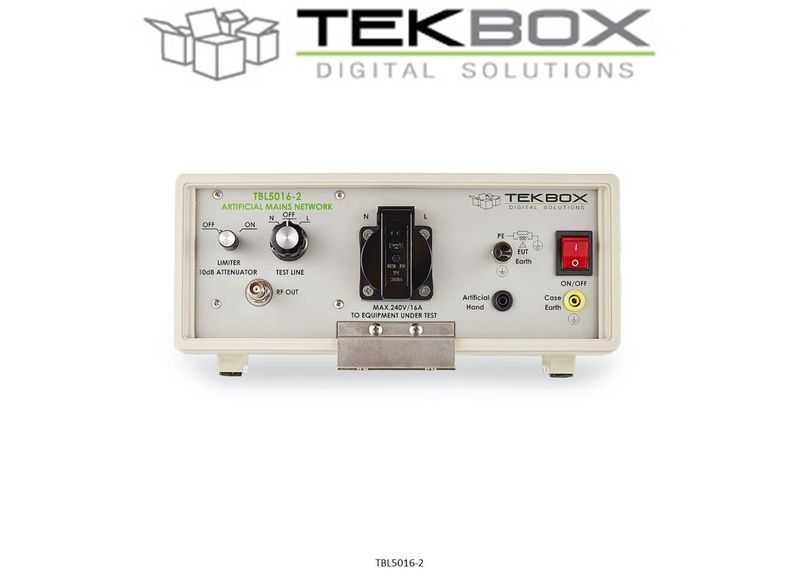

TekBox TBL5016-2 50uH 16A AC Line Impedance Stabilisation Network LISN

Stock Code:
Item: TBL5016-2

Description

The TBL5016-2 is a Line Impedance Stabilization Network for the measurement of line-conducted interference within the range of 9kHz to 30MHz, according to the CISPR 16-1-2 standard.

The device is designed for testing single phase, AC-powered equipment with supply voltages up to maximum 240V and 16A.

Conducted noise can be measured on the phase and on the neutral conductor. The TBL5016-2 is equipped with a switchable limiter/attenuator and an artificial hand connection.

The device is available with country-specific DUT connectors.

Manufacturer:
TEKBOX
Model Number:
TBL5016-2
Warranty:
1 YEAR
Available:
2 WEEKS
$2,065.00 ex GST
$2,374.75 inc GST
